Linux嵌入式學習-ds18b20驅動

發布者:Asawen最新更新時間:2025-01-07 來源: cnblogs關鍵字:Linux  嵌入式學習  ds18b20驅動 手機看文章 掃描二維碼
隨時隨地手機看文章

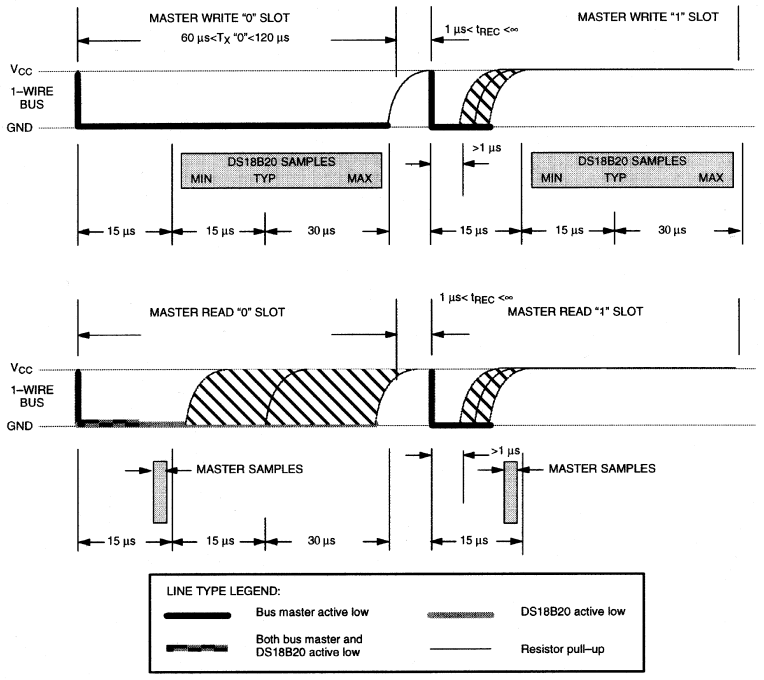

ds18b20的時序圖如下:

復位時序:

讀寫時序:

以下是程序代碼


#include <linux/module.h>


#include


#include


#include


#include


#include


#include


#include


#include


#include


#include


#include


#include gpio.h>


#include






#define GPH3_0CON 0xE0200C60


#define GPH3_0DAT 0xE0200C64


#define GPH3_0PUD 0xE0200C68




unsigned int *gpio_config;


unsigned char *gpio_data;


unsigned int *gpio_pud;




static struct class *fog_class;     //′′?¨àà


static struct class_device *fog_class_devs;   //′′?¨àà??ó|μ?éè±?




int major;




struct mutex res_mutex;




void Ds18b20_Pin_Init(void)


{


    unsigned int pin_val;




    gpio_request(S5PV210_GPH3(0),'my_ds1802');


    gpio_config = ioremap(GPH3_0CON,4);


    gpio_data = ioremap(GPH3_0DAT,1);


    gpio_pud = ioremap(GPH3_0PUD,2);




    pin_val = readl(gpio_pud);


    pin_val &=~(0x0003);


    pin_val |= 0x2;


    writel(pin_val,gpio_pud);




    pin_val = readl(gpio_data);


    writel(pin_val|0x1,gpio_data);




}




void DS18B20_OUT( unsigned char value)


{




    if( value == 1)


    {


        gpio_direction_output( S5PV210_GPH3(0), 1);


    }


    else


    {


        gpio_direction_output( S5PV210_GPH3(0), 0);


    }


}


unsigned char DS18B20_IN( void )


{


    unsigned int pin_val;




    gpio_direction_input( S5PV210_GPH3(0));


    pin_val = readl(gpio_data);


    return pin_val&0x1;


}








static void Init_DS18B20(void)


{


   gpio_direction_output( S5PV210_GPH3(0), 1);


    udelay(200);


    gpio_direction_output( S5PV210_GPH3(0), 0);


    udelay(600);


    gpio_direction_output( S5PV210_GPH3(0), 1);


    udelay(480);




}




static void WriteCode(unsigned char dat)


{


    unsigned char temp,i;




    for(i=0;i<8;i++)


    {


        temp = dat&0x01;


        gpio_direction_output( S5PV210_GPH3(0), 1);


        udelay(2);


        gpio_direction_output( S5PV210_GPH3(0), 0);




        if(temp == 0x01)


        {


            udelay(2);


            gpio_direction_output( S5PV210_GPH3(0), 1);


            udelay(100);


        }else{


            udelay(100);


            gpio_direction_output( S5PV210_GPH3(0), 1);


            udelay(3);


        }


        dat = dat>>1;


    }


}




static void Reset_DS18B20( void )


{


    gpio_direction_output( S5PV210_GPH3(0), 0);


    udelay(500);


    gpio_direction_output( S5PV210_GPH3(0), 1);


    udelay(480);


}




static unsigned int ReadData(void)


{


    unsigned int rec,data,i;


    data = 0;




    for(i=0;i<16;i++)


    {


        gpio_direction_output( S5PV210_GPH3(0), 0);


        udelay(5);




        udelay(3);


        rec = DS18B20_IN();


            udelay(20);


        if(rec){


        data |= 0x8000;


        }else{


        data &= 0x7fff;


        }


        if(i<15)


        data >>=1;


        udelay(20);




        gpio_direction_output( S5PV210_GPH3(0), 1);


        udelay(5);


    }


    return (data);


}




int ds18b20_open(struct inode *node, struct file *filp)


{


    return 0;


}




static int ds18b20_read(struct file * file, char * buffer, size_t count, loff_t *ppos)


{


    int tem;


    int ds_value;




    mutex_lock_interruptible(&res_mutex);




    Ds18b20_Pin_Init();




    Init_DS18B20();


    WriteCode(0xcc);


    WriteCode(0x44);


    gpio_direction_input( S5PV210_GPH3(0));


    udelay(100);


    tem = DS18B20_IN();


    if(tem)


    {


        gpio_direction_output( S5PV210_GPH3(0), 1);


        Reset_DS18B20();


        WriteCode(0xcc);


        WriteCode(0xbe);


        ds_value = ReadData();


    }else{


        udelay(50);


        ds_value = 0xaaaa;


    }


    mutex_unlock(&res_mutex);




    copy_to_user(buffer, &ds_value, 4);




    return sizeof ds_value;


}




static struct file_operations ds18b20_fops =


{


    .open = ds18b20_open,


    .read = ds18b20_read,


};


static int Ds18b20_init(void)


{


    major = register_chrdev( 0,'ds18b20_drv', &ds18b20_fops );


    fog_class = class_create(THIS_MODULE,'ds18b20_class');


    fog_class_devs = device_create(fog_class,NULL,MKDEV(major,0),NULL,'my_ds1802');




    mutex_init(&res_mutex);




    printk('install module successedn');




    return 0;


}


void Ds18b20_exit(void)


{


    unregister_chrdev( major, 'ds18b20_drv' );


    device_unregister(fog_class_devs);


    class_destroy(fog_class);


}


module_init(Ds18b20_init);


module_exit(Ds18b20_exit);


MODULE_LICENSE('GPL');
